Wiring diagram for ford 9n 2n 8n 49 12v rewire tractor conversion 12 volt topics advertising postcard hippostcard yesterday s tractors converting to one wire 8N Ford Tractor Wiring Diagram 6 Volt – 8n ford tractor wiring diagram 6 volt, Every electrical structure is made up of various different components Each part should be placed and linked to other parts in specific manner Otherwise, the arrangement won't function as

8n ford tractor wiring diagram 12 volt

8n ford tractor wiring diagram 12 volt-6 The six volt starter can continue to be used as is, but, it will burn out if the tractor isn't in top tune and is hard starting You never want to crank and crank a 6 volt starter run at 12 volts, keep the tractor in tune If the tractor is tuned well, it should fire up immediately and the starter will not be put under undo stress and heat up Wiring diagram how an alternator works 8N Ford Tractor Wiring Diagram 12 Volt – 8n ford tractor wiring diagram 12 volt, Every electrical structure is made up of various unique parts Lucas Acr Alternator Wiring Diagram Gallery It reveals the parts of the circuit as streamlined forms, and the power and signal connections in between the devices

Ford 851 Electrical Conversion Schematic Tractorbynet

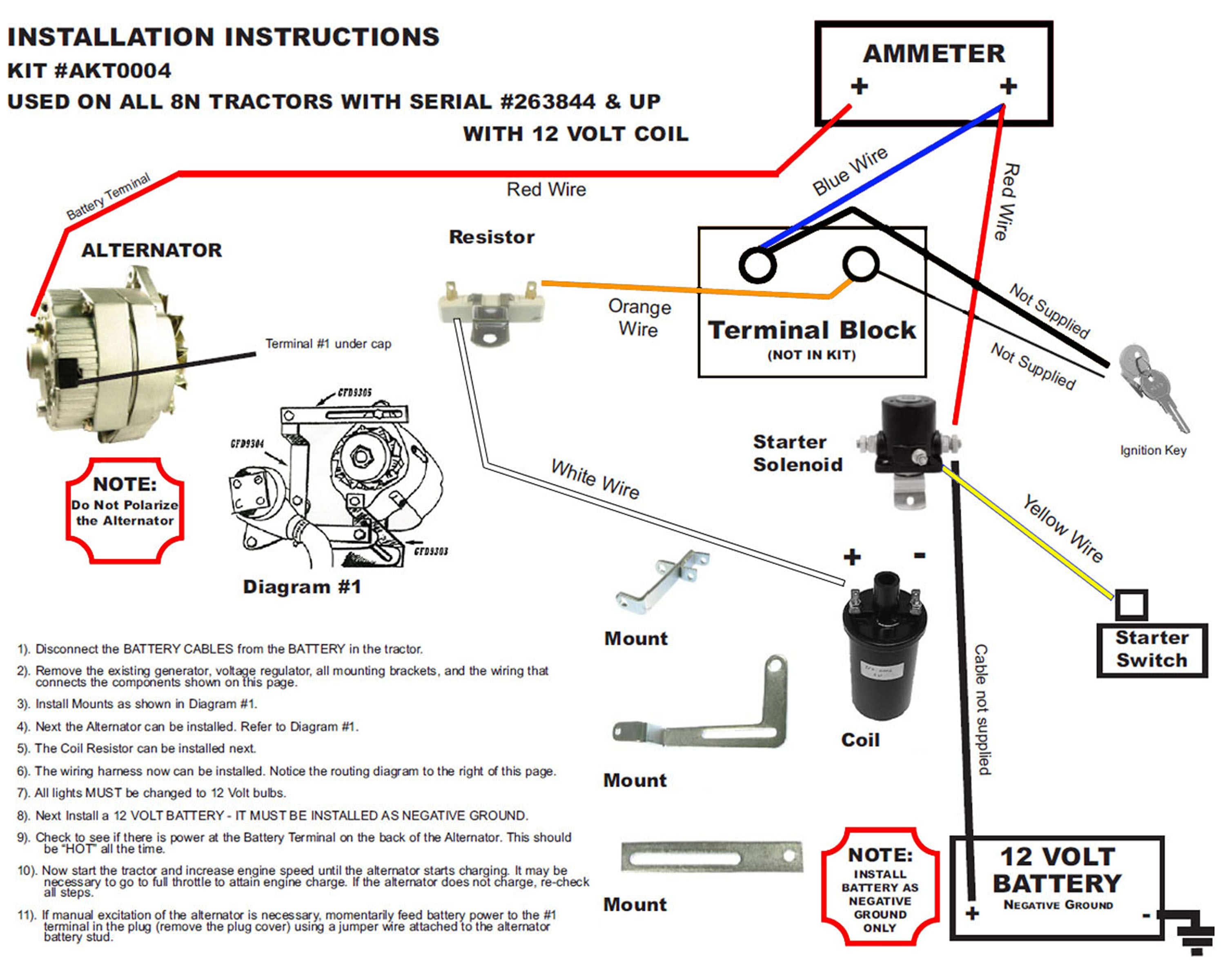

But the wiring on a ford 8n tractor is really very simple Source wwwpinterestcom 8nc * for side mount distributor engines (distributor is mounted to the right side of engine & generator is mounted on left side as sitting in the seat) product number 1952 ford 8n 12 volt wiring diagram Electrical Schematic For 12 V Ford Tractor 8n Google Search 8n Ford Tractor Ford Tractors Tractors 50 New 12 Volt Starter Wiring Diagram Ford Tractor Parts Electrical Diagram 12v Generator Pushbutton Starter Wiring For 9n Yesterday S Tractors Tractor Photos 8n Ford Tractor Ford Tractors 1 Wire Alternator Wiring Diagram Wiring Forums In1952 Ford 8N 12 Volt Conversion Page € € I have recently converted my 1952 Ford 8N over to a 12 Volt Negative ground system The conversion is easy to do, and charges the battery and runs electrical accessories (like lights) much more dependably than the old 6 Volt Postive ground system Another advantage is quicker and easier starting

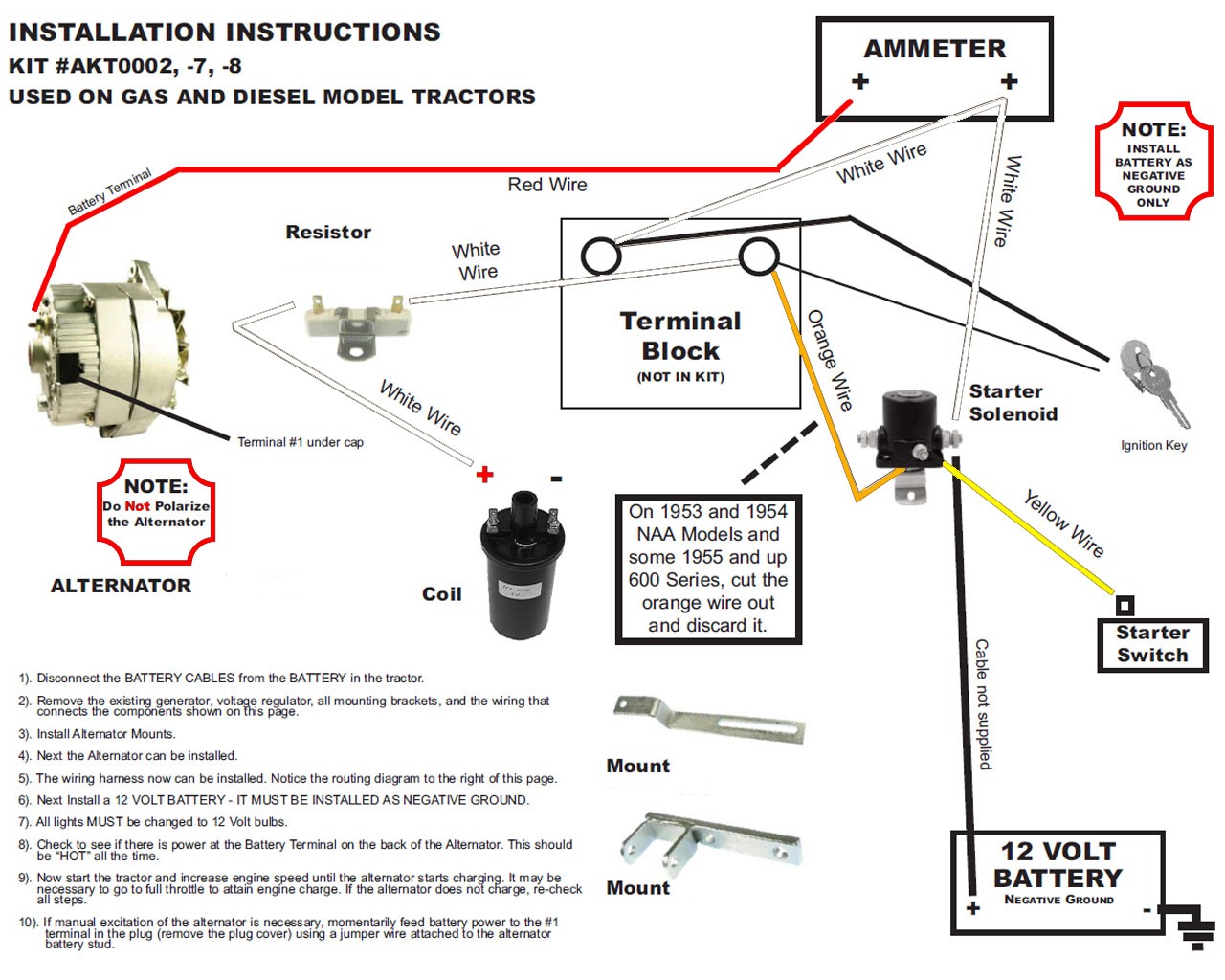

Ford 600 Tractor 12 Volt Wiring Diagram Wiring Diagram Line Wiring Diagram Ford 600 Tractor 12 Volt Wiring Diagram Wiring Diagram Line Wiring Diagram Rareelectrical New Alternator Conversion Kit Compatible With 1939 1951 Ford 8n Tractors 1100 0530 8nealt C 8nealtc Online In Poland B017obl95wFord Fits 8N * 126 pages* This manual includes an electrical wiring diagram An operators manual sometimes referred to as the owner's manual is the manual that came with the tractor It is the manual that was given to the ultimate consumer by the manufacturer ItFORD TRACTOR 12 VOLT CONVERSION INFO For all NSeries Tractors and others Just Scroll Down and click on the link to the specific wiring diagrams you are looking for This page links directly to all of my 6 volt and 12 volt wiring diagrams There are specific diagrams for the FordFerguson 9N, 2N, Ford 8N, 53 Jubilee, and Ford ,, tractors

8n ford tractor wiring diagram 12 voltのギャラリー

各画像をクリックすると、ダウンロードまたは拡大表示できます

The Easy 12 Volt Conversion All NSeries FrontDistributor Tractors FordFerguson 9N, 2N, and Ford 8N Tractor Wiring 101 For The Electrically Challenged This is condensed written conversion instructions with no confusing diagrams or electrical theory Nobody really wants to know that "stuff" anyway, right? Ford 851 Electrical Conversion Schematic Tractorbynet Ford 600 12 volt converison wiring diagrams for tractors electrical parts converting from 6 volts to 12v conversion problem my tractor forum alternator kit compatible 9n 2n 8n by jim lawrence jubilee 641 yesterday wallpapers 49 super a farmall cub harness vw jetta golf 851 harnesses 1957 860 diagram naa
